Rendering API

Reports with a Document Creator report layout are rendered by using HTTP requests to a rendering API.

Default API

By default, Document Creator uses the rendering API that is hosted by Apportunix.

This API comes with a few restrictions including restrictions on the number of render requests that are allowed per Microsoft Entra tenant.

Available Fonts

The following fonts are available to use in Apportunix Document Creator layouts:

  • Aptos1
  • Aptos Display1
  • Aptos Narrow1
  • Arial
  • Arial Black
  • Calibri
  • Calibri Light
  • Candara
  • Comic Sans MS
  • Consolas
  • Corbel
  • Courier New
  • Ebrima
  • Franklin Gothic Medium
  • Gabriola
  • Gadugi
  • Georgia
  • Impact
  • Javanese Text
  • KIX Barcode2
  • Leelawadee UI Semilight
  • Leelawadee UI
  • Leelawadee
  • Lucida Console
  • Lucida Sans Unicode
  • Malgun Gothic Semilight
  • Malgun Gothic
  • Marlett
  • Microsoft Himalaya
  • Microsoft New Tai Lue
  • Microsoft PhagsPa
  • Microsoft Sans Serif
  • Microsoft Tai Le
  • Microsoft Uighur
  • Microsoft Yi Baiti
  • Mongolian Baiti
  • MS Gothic
  • MS PGothic
  • MS UI Gothic
  • MV Boli
  • Myanmar Text
  • Nirmala UI Semilight
  • Nirmala UI
  • Open Sans
  • Palatino Linotype
  • Segoe MDL2 Assets
  • Segoe Print
  • Segoe Script
  • Segoe UI Black
  • Segoe UI Emoji
  • Segoe UI Historic
  • Segoe UI Light
  • Segoe UI Semibold
  • Segoe UI Semilight
  • Segoe UI Symbol
  • Segoe UI
  • Sylfaen
  • Tahoma
  • Times New Roman
  • Trebuchet MS
  • Ubuntu
  • Verdana
  • Yu Gothic Light
  • Yu Gothic Medium
  • Yu Gothic UI Light
  • Yu Gothic UI Semibold
  • Yu Gothic UI Semilight
  • Yu Gothic UI
  • Yu Gothic

It is not possible to add/use additional/custom fonts with the default rendering API.

Available Barcode Types

The report engine used by Apportunix Document Creator includes extensive support for various barcode types, among others including:

  • 2/5 Interleaved
  • 2/5 Industrial
  • 2/5 Matrix
  • Deutsche Identcode
  • Deutsche Leitcode
  • ITF-14
  • Codabar
  • Code128
  • Code39
  • Code39 Extended
  • Code93
  • Code93 Extended
  • EAN8
  • EAN13
  • MSI
  • PostNet
  • Japan Post 4 State Code
  • UPC-A
  • UPC-E0
  • UPC-E1
  • Supplement 2
  • Supplement 5
  • PDF417
  • Datamatrix
  • QR Code
  • Aztec
  • Plessey
  • GS1-128 (UCC/EAN-128)
  • GS1 DataBar Omnidirectional
  • GS1 DataBar Limited
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • Pharmacode
  • Intelligent Mail (USPS)
  • MaxiCode
  • KIX Barcode2

Restrictions

The usage from a Business Central environment is restricted to a maximum number of requests in a time period to ensure a stable experience. The restrictions that are put on the number of requests are configured differently for Production and Sandbox (Demo) environments.

Important

Apportunix holds the right to add, modify and/or remove restrictions on the default rendering API with the goal to improve the experience for the majority of the user base of the API.

As described by the Acceptable Usage Policy of the end-user license agreement, usage of the default API is subject to "fair use". Acceptable/fair use of the default rendering API is evaluated and determined by Apportunix and based, among other things, on usage quantity compared to that of other users of the API.

Production Environments

The following table summarizes the currently configured limits per time period for Production environments:

Time Period Maximum Number of Render Requests
2 seconds 8
1 hour 1250

There is a time limit of 60 seconds for report rendering requests. When this time limit is exceeded you will get an error message that reads "Report generation timed out".

Sandbox Environments

The following table summarizes the currently configured limits per time period for Sandbox environments:

Time Period Maximum Number of Render Requests
2 seconds 5
1 hour 1250
1 day 8000

There is a time limit of 30 seconds for report rendering requests. When this time limit is exceeded you will get an error message that reads "Report generation timed out".

Alternative API

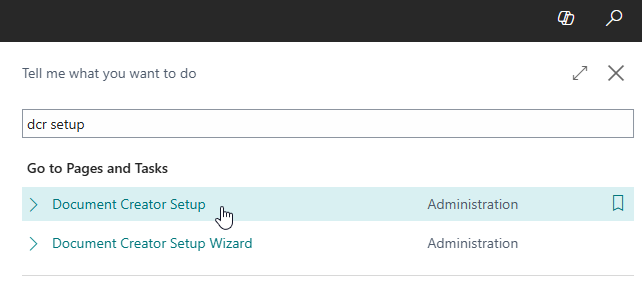

On the Document Creator Setup page you can also configure Document Creator to use an alternative API for rendering report layouts.

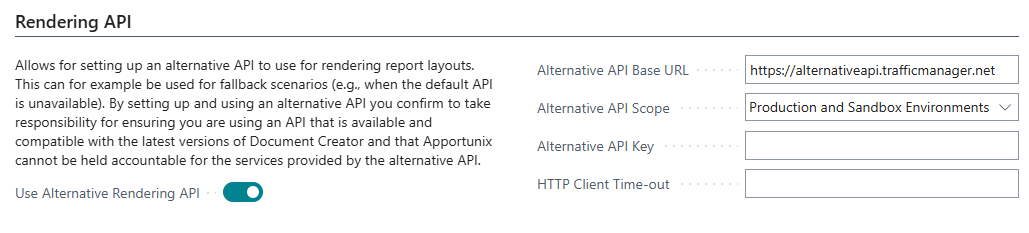

Alternative Rendering API

This can for example be used for fallback scenarios (e.g., when the default API is unavailable). By setting up and using an alternative API you confirm to take responsibility for ensuring you are using an API that is available and compatible with the latest versions of Document Creator and that Apportunix cannot be held accountable for the services provided by the alternative API.

  • When an alternative/custom rendering API is used, a daily license check is performed using the default API. If this license check fails (e.g., because the default API could not be reached), then there is a 15-day grace period that the license check with the default API is allowed to fail.
  • The alternative rendering API is used when Use Alternative Rendering API is enabled (i.e., set to TRUE) and the Alternative API Base URL is non-empty.
  • In addition there is an Alternative API Scope field that can be used to configure for which environment types the alternative rendering API applies. This is added to account for environments being copied from Production as Sandbox environments (and vice versa).

  1. To use the Aptos font in the Document Creator Designer, download and install the font on your PC.

  2. To use the KIX Barcode font in the Document Creator Designer, install and use the font following the instructions provided by the vendor, PostNL


Last update: May 20, 2025
